PALSTAR ANTENNA TUNERS
A lifetime of excellence in engineering is inside every Palstar product. Manual or automatic, these antenna tuners will last a lifetime.

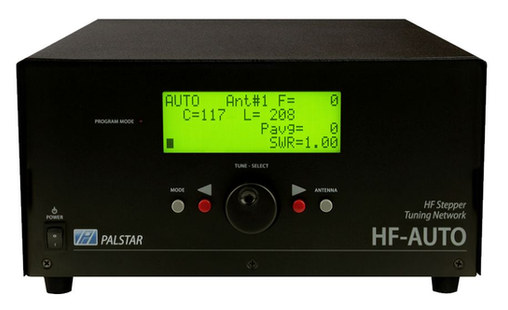

PALSTAR HF-AUTO
The Palstar HF-AUTO 1800 watt automatic antenna tuner covers 160 to 6 Meters with a power rating of up to 1800 watts PEP. Hams have enjoyed the benefits of low power auto-tuners for years, but now Palstar takes it to the next level and offers auto-tuning with a power rating of 5 Watts to 1800 watts.
Like all Palstar products the HF-AUTO was designed by Hams for Hams carrying on the Palstar tradition for high-quality products designed and made in the USA.
Like all Palstar products the HF-AUTO was designed by Hams for Hams carrying on the Palstar tradition for high-quality products designed and made in the USA.
HF-AUTO-R
The Palstar HF-AUTO-R is the full-function remote control unit for use with the HF-AUTO automatic antenna tuner. The HF-AUTO-R allows for remote operation of the HF-AUTO base unit up to 500' away and duplicates all buttons, controls, and display info.
AT5K
3500 watt Antenna Tuner
The new AT5K 3500 watt antenna tuner covers 15m to 160m with limited Z range on 10m with a power rating of up to 3500 watts PEP. The AT5K takes power handling to the next level over the AT4K, coming in with a rating of 3500 watts single tone continuous performance with low losses & wide Z range. Bands coverage is 160m to 15m with limited Z range on 10m. The AT5K provides balanced OUTPUT with high power 5kW TEFLON cable balun at the INPUT of the tuner circuit for excellent balanced feed antenna operation.

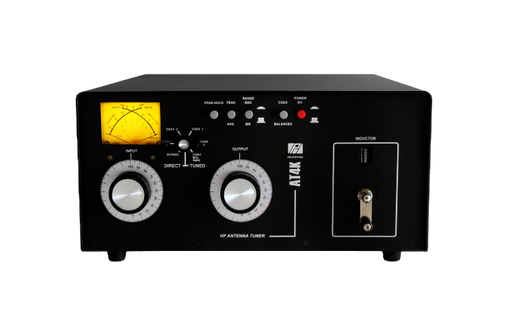

AT4K - 2500 watt PEP tuner
The Palstar AT4K 2500 watt antenna tuner covers 160 to 10 Meters with a power rating of up to 2500 watts PEP. The AT4K is the tuner that built Palstar's reputation for high-quality and "Built-Like-A-Tank" durability. Unwilling to rest on our laurels, over the years Palstar has added new features to our classic
AT2K - 2000 watt PEP tuner
The new AT2K 2000 watt antenna tuner covers 160 to 6 Meters with a power rating of up to 2000 watts PEP and features a newly-designed, smaller roller inductor allowing the AT2K to tune 6 Meters without the need for the additional red button as on older models. The updated design for the capacitors features lower minimum capacitance for improved high band performance, while maximum capacitance has been increased to 400pF for better low band performance.
AT2KD - 2000 watt PEP Differential tuner
The Palstar AT2KD antenna tuner covers 6 to 160 Meters with a power rating of up to 2000 watts PEP and is identical in all respects to the AT2K except instead of three controls, the tuner features just two to tune your antenna.
The AT2KD matches dipoles, center fed doublets, Verticals, end-fed wire, delta loops, beams, Windoms, Inverted V's and an optional external 4:1 or 1:1 current balun for balanced wire feeders can be purchased during check-out.
The AT2KD matches dipoles, center fed doublets, Verticals, end-fed wire, delta loops, beams, Windoms, Inverted V's and an optional external 4:1 or 1:1 current balun for balanced wire feeders can be purchased during check-out.
BT1500A - 1500 watt PEP Balanced Tuner
The BT1500A 1500 watt balanced antenna tuner is the only 1500 Watt, Double-L Network antenna tuner on the market today covering 20m to 160m (2500+/-j2500) and 10m - 15m (1000+/-j1000). The BT1500A features two tandem mounted, precision ceramic roller inductors for a truly balanced tuner.
AT500 - 600 watt Antenna Tuner
The Palstar quality and features that Hams worldwide have come to expect is now available in a compact, low power affordably priced tuner, the AT-500 600 watt antenna tuner.
Covering 160 to 6 Meters with a power rating of up to 600 watts PEP, the AT-500 features a differential tuning capacitor with 2 stators and 1 rotor, a precision ceramic body roller inductor, and a 4:1 ferrite current balun for balanced line feeds.
The AT-500 utilizes only 2 controls to operate for tuning, providing maximum ease of use in a manual tuner. A small-sized roller inductor operates all the way up to 6 m, while a relay-switched add-on inductor allows 160 m operation.
Also included is Pastar's Active Peak and Peak Hold dual cross-needle metering as in the popular PM2000A wattmeter and 11ga. .090" thick chem-film treated aluminum metalwork and durable powder coated finish. The AT-1500 is a tuner that will last a lifetime.
Covering 160 to 6 Meters with a power rating of up to 600 watts PEP, the AT-500 features a differential tuning capacitor with 2 stators and 1 rotor, a precision ceramic body roller inductor, and a 4:1 ferrite current balun for balanced line feeds.
The AT-500 utilizes only 2 controls to operate for tuning, providing maximum ease of use in a manual tuner. A small-sized roller inductor operates all the way up to 6 m, while a relay-switched add-on inductor allows 160 m operation.
Also included is Pastar's Active Peak and Peak Hold dual cross-needle metering as in the popular PM2000A wattmeter and 11ga. .090" thick chem-film treated aluminum metalwork and durable powder coated finish. The AT-1500 is a tuner that will last a lifetime.
